The aeronautical charts contained in the AIP are published by the AIS headquarters (see GEN 3.1.1) in accordance with the provisions contained in ICAO Annex 4 – Aeronautical Charts.

The aeronautical charts included in the AIP are kept up to date by amendments to the AIP. Corrections to aeronautical charts not contained in the AIP are promulgated by AIP Amendments and are listed under paragraph GEN 3.2.8 of this section. The information concerning the planning for or issuance of new maps and charts is notified by AIC.

Incorrect information detected on published charts is corrected by NOTAM if it is of operational significance.

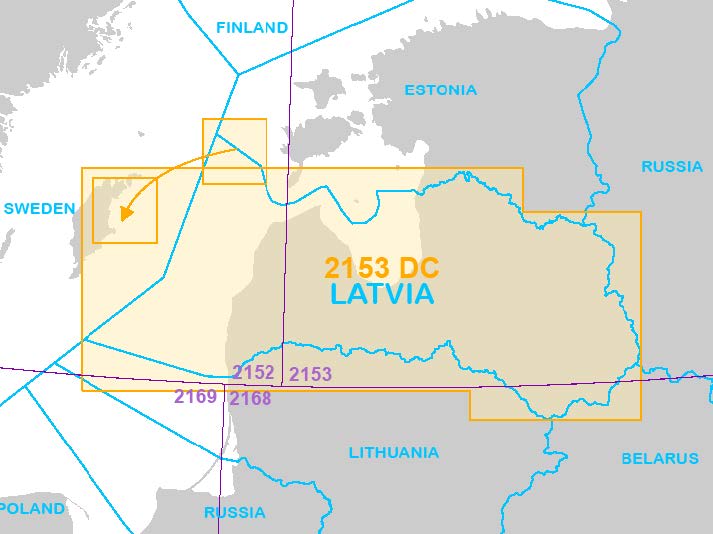

The Aeronautical Chart ICAO 1:500 000 of Latvia is the official aeronautical chart which is not contained in the AIP of Latvia.

The sale of the Aeronautical Chart of Latvia - ICAO 1:500 000 is delegated to LLC “Karšu veikals Jāņa sēta” and the chart may be obtained directly from LLC „Karšu veikals Jāņa sēta” or on the website www.karsuveikals.lv.

Post: LLC „Karšu veikals Jāņa sēta”

Elizabetes iela 85a,

Rīga, LV – 1050, Latvija

Phone: +371 27000062

Fax: +371 67828039

Email: veikals@karsuveikals.lv

URL: https://www.karsuveikals.lv

The following series of aeronautical charts are produced:

a. Aeronautical Chart - ICAO 1:500 000;

b. Aerodrome Chart – ICAO;

c. Aircraft Parking/Docking Chart - ICAO;

d. Aerodrome Ground Movement Chart - ICAO;

e. Aerodrome Obstacle Chart - ICAO - Type A (for each runway);

f. Aerodrome Terrain and Obstacle Chart — ICAO (Electronic);

g. En-route Chart - ICAO;

h. Standard Departure Chart - Instrument (SID) - ICAO;

i. Standard Arrival Chart - Instrument (STAR) - ICAO;

j. Instrument Approach Chart - ICAO (for each runway and procedure type);

k. Visual Approach Chart - ICAO;

l. ATC Surveillance Minimum Altitude Chart - ICAO;

m. Precision Approach Terrain Chart - ICAO.

The charts currently available are listed under paragraph GEN 3.2.5 of this section.

General description of each series:

a. Aeronautical Chart - ICAO 1:500 000. This series is constructed on Lambert Conformal Conic Projection. The aeronautical data shown are consistent with the use of short and medium range operations and depict all relevant features. The chart includes a selection of aerodromes, significant obstacles, elements of ATS system, prohibited, restricted and dangerous areas, and radio navigation aids. The chart provides the information needed for visual air navigation and is also used as a pre-flight planning chart.

b. Aerodrome Chart - ICAO. This chart contains detailed aerodrome data to provide flight crews with the information that will facilitate the ground movement of aircraft:

- from the aircraft stand to the runway; and

- from the runway to the aircraft stand.

It also provides essential operational information at the aerodrome.

c. Aircraft Parking/Docking Chart - ICAO. This chart is produced for those aerodromes where, due to the complexity of the terminal facilities, the information to facilitate the ground movement of aircraft between the taxiways and the aircraft stands and the parking/docking of aircraft cannot be shown with sufficient clarity on the Aerodrome/Heliport Chart — ICAO or on the Aerodrome Ground Movement Chart - ICAO.

d. Aerodrome Ground Movement Chart - ICAO. This chart is produced for those aerodromes where due to the complexity of the terminal facilities, the information to facilitate the ground movement of aircraft between the taxiways and the aircraft stands and the parking of aircraft cannot be shown with sufficient clarity on the Aerodrome Chart – ICAO.

This supplementary chart provides flight crews with the detailed information to facilitate the ground movement of aircraft between the taxiways and the aircraft stands and the parking of aircraft.

e. Aerodrome Obstacle Chart - ICAO - Type A (operating limitations). This chart contains detailed information on obstacles in the take-off flight path areas of aerodromes. It is shown in plan and profile view.

f. Aerodrome Terrain and Obstacle Chart — ICAO (Electronic). This electronic chart portrays the terrain and obstacle data in combination with aeronautical data, as appropriate, necessary to:

a) enable an operator to comply with the operating limitations of Annex 6, Part I, Chapter 5, and Part III, Section II, Chapter 3, by developing contingency procedures for use in the event of an emergency during a missed approach or take-off, and by performing aircraft operating limitations analysis; and

b) support the following air navigation applications:

1) instrument procedure design (including circling procedure);

2) aerodrome obstacle restriction and removal; and

3) provision of source data for the production of other aeronautical charts.

g. En-route Chart - ICAO. This chart is produced for the Riga FIR. The aeronautical data include all aerodromes, prohibited, restricted and danger areas and the air traffic services system in detail. The chart provides flight crews with information to facilitate navigation along ATS routes in compliance with air traffic services procedures.

h. Standard Departure Chart - Instrument (SID) - ICAO. This chart is produced whenever a standard departure route - instrument has been established and cannot be shown with sufficient clarity on the Area Chart - ICAO.

The aeronautical data include the aerodrome of departure, aerodrome(s) which affect the designated standard departure route - instrument, prohibited, restricted and danger areas and the air traffic services system.

This chart provides flight crews with information to enable them to comply with the designated standard departure route - instrument from the take-off phase to the en-route phase.

i. Standard Arrival Chart - Instrument (STAR) - ICAO. This chart is produced whenever a standard arrival route - instrument has been established and cannot be shown with sufficient clarity on the Area Chart -ICAO. The aeronautical data shown include the aerodrome of landing, aerodrome(s) which affect the designated standard arrival route - instrument, prohibited, restricted and danger areas and the air traffic services system. This chart provides flight crews with information to enable them to comply with the designated standard arrival route - instrument from the en-route phase to the approach phase.

j. Instrument Approach Chart - ICAO. This chart is produced for all aerodromes used by civil aviation where instrument approach procedures have been established. A separate Instrument Approach Chart –ICAO has been provided for each approach procedure. The aeronautical data shown include the information on aerodromes, prohibited, restricted and danger areas, radio communication facilities and navigation aids, minimum sector altitude, procedure track portrayed in plan and profile view, aerodrome operating minima, etc. This chart provides flight crews with information that will enable them to perform an approved instrument approach procedure to the runway of intended landing including the missed approach procedure and where applicable, associated holding patterns.

k. Visual Approach Chart - ICAO. This chart is produced for aerodromes used by civil aviation where:

- only limited navigation facilities are available; or

- radio communication facilities are not available; or

- no adequate aeronautical charts of the aerodrome and its surroundings at 1:500 000 or greater scale are available; or

- visual approach procedures have been established.

The aeronautical data shown include the information on aerodromes, obstacles, designated airspace, visual approach information, radio navigation aids and communication facilities as appropriate.

l. ATC Surveillance Minimum Altitude Chart - ICAO. This chart provides information that will enable flight crews to monitor and cross-check altitudes assigned by a controller using an ATS surveillance system.

m. Precision Approach Terrain Chart - ICAO. This chart provides detailed terrain profile information within a defined portion of the final approach so as to enable aircraft operating agencies to assess the effect of the terrain on decision height determination by the use of radio altimeters.

To supplement the aeronautical charts, a wide range of topographical charts is available from:

Post:

State agency “Latvian Geospatial Information Agency”

Ojāra Vācieša iela 43

Rīga, LV-1004

Latvija

Tel:+371 25691504

Fax:+371 29370505

Email: pakalpojumi@lgia.gov.lv

AFS: NIL

Charts	Location	Corrections
Aeronautical chart of Latvia – ICAO 1: 500 000		10th edition WEF 21 MAY 2020. The publication of this issue invalidates the previous issue.
Aeronautical chart of Latvia – ICAO 1: 500 000		11th edition WEF 17 JUN 2021. The publication of this issue invalidates the previous issue.
Aeronautical chart of Latvia – ICAO 1: 500 000	571134N 0243934E	TSA9 lateral limits updated
Aeronautical chart of Latvia – ICAO 1: 500 000	564603N 0244942E	Obstacle LIELVARDE withdrawn.
Aeronautical chart of Latvia – ICAO 1: 500 000	563745N 0210245E	EVR3, EVR4 withdrawn.
Aeronautical chart of Latvia – ICAO 1: 500 000	564624N 0244907E	TRA7 LIELVARDE vertical limits updated.
Aeronautical chart of Latvia – ICAO 1: 500 000	562809N 0215021E	EVP2 VAINODE established.
Aeronautical chart of Latvia – ICAO 1: 500 000	572512N 0265013E	EVP3 LACUSILS established.
Aeronautical chart of Latvia – ICAO 1: 500 000	573116N 0252438E	EVP4 KAUGURMUIZA established.
Aeronautical chart of Latvia – ICAO 1: 500 000	565705N 0240619E	EVR2 vertical limits updated.
Aeronautical chart of Latvia – ICAO 1: 500 000	565950N 0240706E	SPILVE TMZ, CTAF added.
Aeronautical chart of Latvia – ICAO 1: 500 000	563628N 0232730E	NAKOTNE HELIPORT (EVHN) established.
Aeronautical chart of Latvia – ICAO 1: 500 000	563623N 0232708E	NAKOTNE CENTRA JAUNZEMJI (EVJC) withdrawn.
Aeronautical chart of Latvia – ICAO 1: 500 000	565724N 0240545E	OLD CITY HELIPORT (EVOC) withdrawn.
Aeronautical chart of Latvia – ICAO 1: 500 000	561612N 0205533E	EVR3 JURMALCIEMS1 and EVR4 JURMALCIEMS2 established.
Aeronautical chart of Latvia – ICAO 1: 500 000	561612N 0205533E	TRA18 JURMALCIEMS1 and TRA19 JURMALCIEMS2 established.
Aeronautical chart of Latvia – ICAO 1: 500 000	563017N 0235542E	Enroute DME Jaunsvirlauka (JVL) established.
Aeronautical chart of Latvia – ICAO 1: 500 000	571839N 0250915E	Enroute DME Raiskums (RSK) established.
Aeronautical chart of Latvia – ICAO 1: 500 000	563821N 0215334E	Enroute DME Rudbarzhi (RDB) established.
